Luxury & Performance

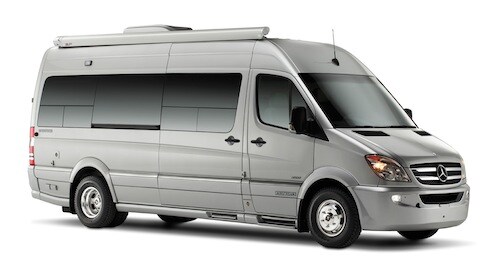

What do you get when you fuse the legendary quality and design of Airstream with the comfort, control, and luxury of Mercedes Benz? The all-new Interstate 3500, a touring coach like no other.
Surrounded in a den of luxury with all the comforts of home, the Interstate 3500 has seating for up to eight passengers, a kitchen, bathroom, convertible sleeping area, and rich Ultraleather bucket seats that swivel to face a mealtime table for four.
Powered by a 3.0-liter V6 diesel engine, the Interstate 3500 produces 188 horsepower and 325 lb.-ft. of torque. So while it gets 30% better fuel economy than a comparable gasoline engine, it also has the capacity to tow 5,000 pounds!
With its engineering excellence, two floorplans, and a host of standard features, you might never leave the Interstate 3500. After all, it's not the destination, it's the journey. |
| Chassis |
Lounge |
Twin |
| Specifications |
Mercedes-Benz Sprinter 3500 Series |
| Engine |
3.0 liter V-6 turbo diesel ? 188 hp/325 lb.- ft. torque |
| Transmission |
5-speed automatic |
| Gross Vehicle Weight Rating (lbs.) |
11,030 |
| Gross Combined Weight Rating (lbs.) |
15,250 |
| Unloaded Vehicle Weight (lbs.) |
8,133 |
8,056 |
| Occupant and Cargo Carrying Capacity (lbs.) |
2,897 |
2,974 |
| Towing Capacity - draw bar (lbs.) |
5,000 |
| Towing Capacity - vertical tongue weight (lbs.) |
500 |
| Dimensions and Capacities |
|
|
| Overall Length |
22' 9" |
| Overall Height (w/ A/C) |
9' 8" |
| Overall Width |
6' 7.7" |
| Interior Height |
6' 2.25" |
| Interior Width @ Floor |
5' 10" |
Sleeping Capacity
|
2 |
2 |
Seating Capacity
|
8 |
3
|
| Fresh Water (total usable capacity) (gal.) |
32 |
Grey Water Tank Capacity (gal.)
|
27 |
| Black Water Tank Capacity (gal.) |
16 |
LPG Tank Capacity (gal.)
|
18.9 |
| Diesel Fuel Tank Capacity (gal.) |
26.4 |
Systems
|
|
|
| Air Conditioner w/ wall thermostat (BTU) |
13,500 |
Furnace (BTU)
|
16,000
|
| Refrigerator (energy efficient compressor style) |
3.1 cu. ft. 12 volt / 110 volt |
Converter/Inverter
|
45 amp multi-stage charger 750 watt inverter
|
| Generator w/ remote start |
LPG 2.5 kW Onan® |
Auxillary (coach) Batteries
|
Two 12 volt deep cycle maintenance free Group 24 AGMs
|
| Shore Power |
30 amp/110 volt service w/Energy Management System |
Decors
 |
 |
| Onyx |
Sand Pearl |
Product information, specifications, and photography in this website were as accurate as possible at time of publishing. Photographs may contain some features that are optional on your vehicle. Since we continually strive to improve our products, actual products may differ. Prices and specifications are subject to change without notice. All capacities are approximate and dimensions are nominal. Some features or options may be different or unavailable in Canada.
Vehicle Loading: Every effort has been made to provide the greatest number of options for the recreation vehicle owner. Along with these choices comes the responsibility to manage the loads that are imposed by the choices so that they remain within the manufacturer's specified chassis weight limits. Do not overload the recreation vehicle.
Dry Weights: Based on standard features; optional equipment not included. Net carrying capacity (NCC) determined by subtracting unloaded vehicle weight (UVW) from gross vehicle weight (GVWR) and includes fluids, options, and cargo. Liquid capacities and weights are approximations only.
Warning This information is intended as a guide only. Weights of individual vehicles may vary. Consult your owner's manual for complete loading, weighing, and towing instructions.
|
